NorthFlo 90,000 BTU Variable Speed Inverter Heat Pump
Out of Stock

NorthFlo 90,000 BTU Variable Speed Inverter Heat Pump


$3,999.00 $4,704.99 You save 15%
Out Of Stock

This Product is Out of Stock but we can notify you by email when it's available again.

Ships Freight From Ontario

Please note that this product cannot be shipped or delivered to a PO Box.

  • Description
  • Warranty
  • Manuals & Attachments
  • Reviews (3)

Detailed Product Description

Product Name:
NorthFlo 90,000 BTU Variable Speed Inverter Heat Pump
Product Code:
BTU Rating:
Heater Type:
Heat Pump
1.5 Inch Slip fit PVC unions
Minimum Flow Rate:
40 GPM
Operating Air Temperature:
32 - 109F or 0 - 43C
37.5 - 49.0
208 - 230 V
Breaker Size:
37.8 Inches x 16.5 Inches x 25.9 Inches
170 LBS
2 Year Parts and Labour, 5 Year Titanium Heat Exchanger

NorthFlo variable speed heat pumps utilize the newest technology available in the heat pump industry. Their variable speed compressor allows it to modulate its operating speed from 20% to 100%, offering you the lowest operating cost, a stronger average COP (coefficient of performance), a more silent product, and even more great benefits!

NorthFlo 90,000 BTU heat pumps are the perfect choice for above ground pools up to 30 feet in size, and inground pools up to 16 x 32 feet in size (or 105,000 litres in volume). Note: heater efficiency and output may vary, depending on operating conditions.


  • Output: 90,000 BTU heat pump with titanium heat exchanger, 1.5 inch PVC union inlet/outlet, and black/green high durability ABS cabinet (208 - 230 V / Single Phase / 60 Hz Power Required)
  • Inverter Powered Compressor: reduces operating costs by up to 50% over the course of a typical season (compared to traditional heat pump technology)

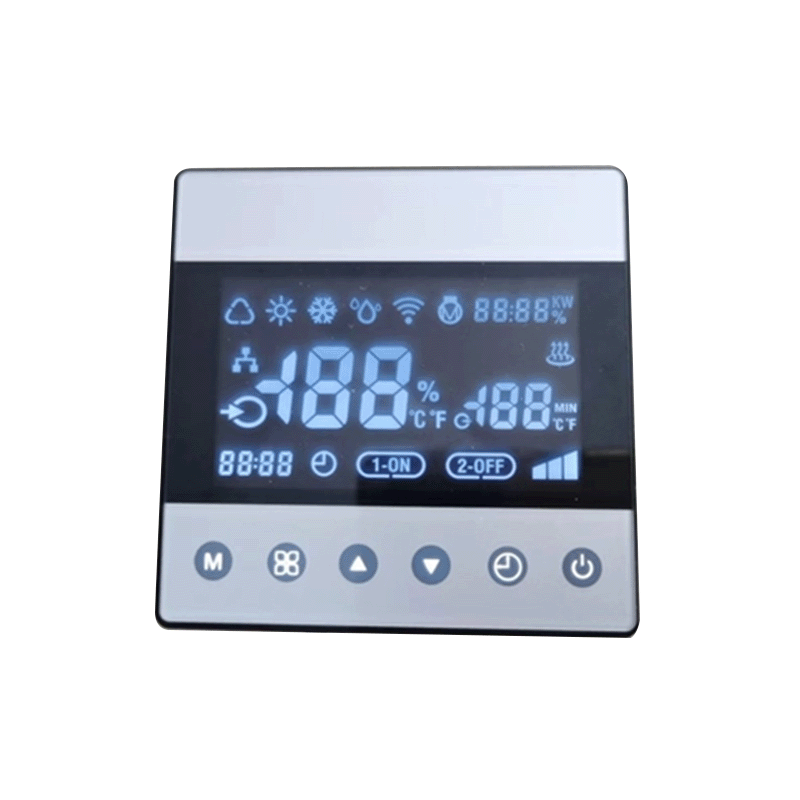

  • Digital Controller: easily set and control your unit, with simple, fully digital temperature controls
  • Environmentally Friendly: NorthFlo heat pumps are equipped with eco-friendly R410 gas refrigerant
  • Dimensions: 37.8 Inches x 16.5 Inches x 25.9 Inches
  • Drain: Features a drip tray drain and gravity-draining water lines
  • Other Industry Leading Features: A stronger COP with an average of 8 (compared to 5 with traditional heat pump technology), seriously silent operating noise levels (as low as 48 db) and soft start functionality that lowers electrical demand and increases unit durability and lifespans, all work together to position NorthFlo VS heat pumps as one of the best in the industry

This unit is not compatible with soft-sided pools (Intex, Coleman, Bestway) due to insufficient flow rate. Installing this unit on a soft-sided pool voids product warranty.

Warranty Coverage: At the manufacturer's discretion. Limited warranty covers replacement parts and labour if the heater is installed with a pool or spa. The Applicable Warranty Period is two (2) years from the Purchase Date for labour, two (2) years from the Purchase Date for parts and five (5) years on the Titanium Heat Exchanger. The warranty does not cover damage caused by improper water chemistry. The warranty will be void if the heater is not installed by a licensed technician, or the heater has been installed on a soft sided pool. Please see product manual for specific warranty details.

Warranty Information

Manufacturer Warranty: Refer to the product description for manufacturer warranty details and conditions.

Extended Warranty Details*: Pool Supplies Canada extended warranty applies to part-only replacement during the extended warranty period.

* Note: extended warranty coverage does not begin until after the included manufacturer warranty term has ended.

Customer Reviews

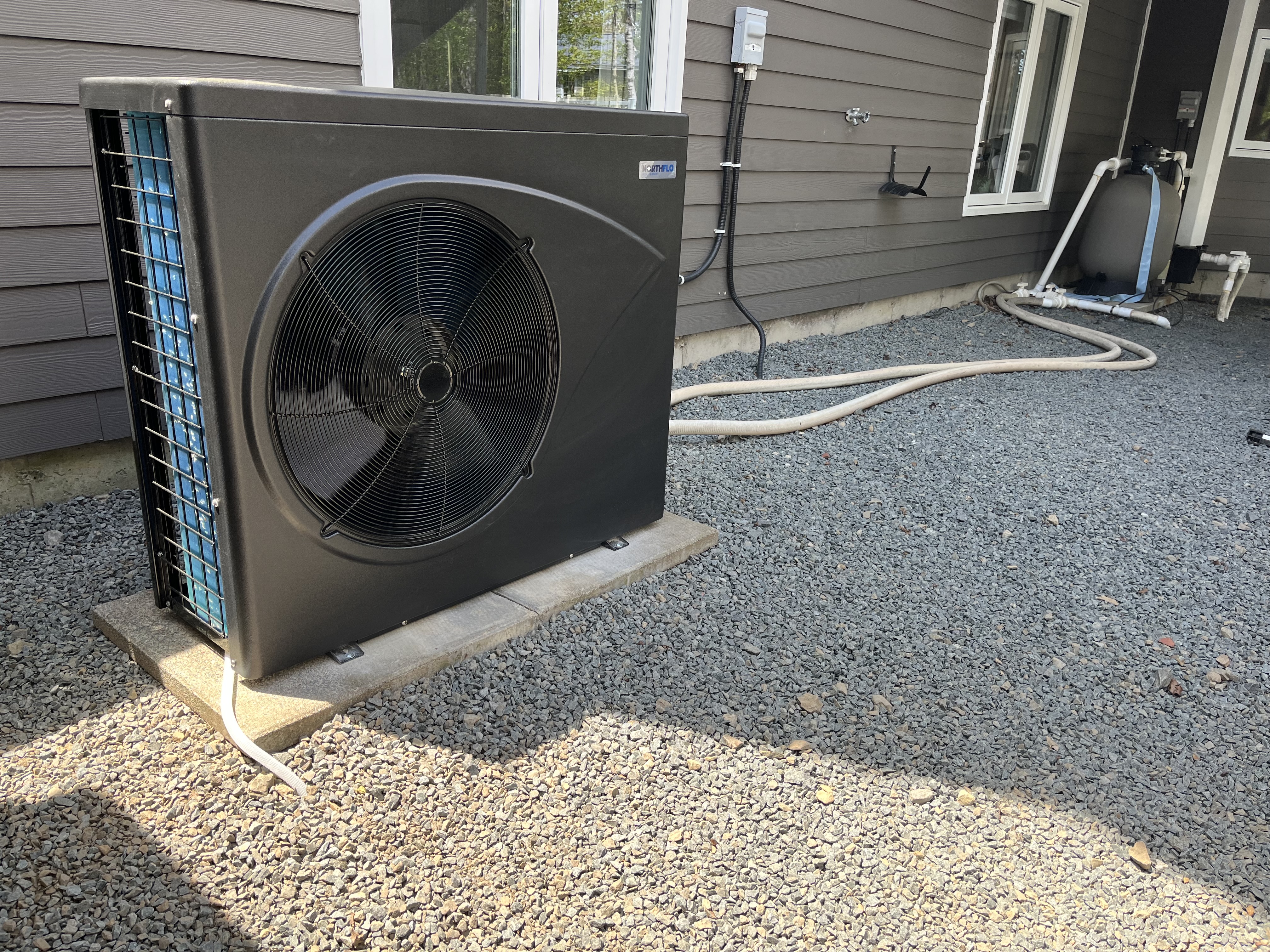

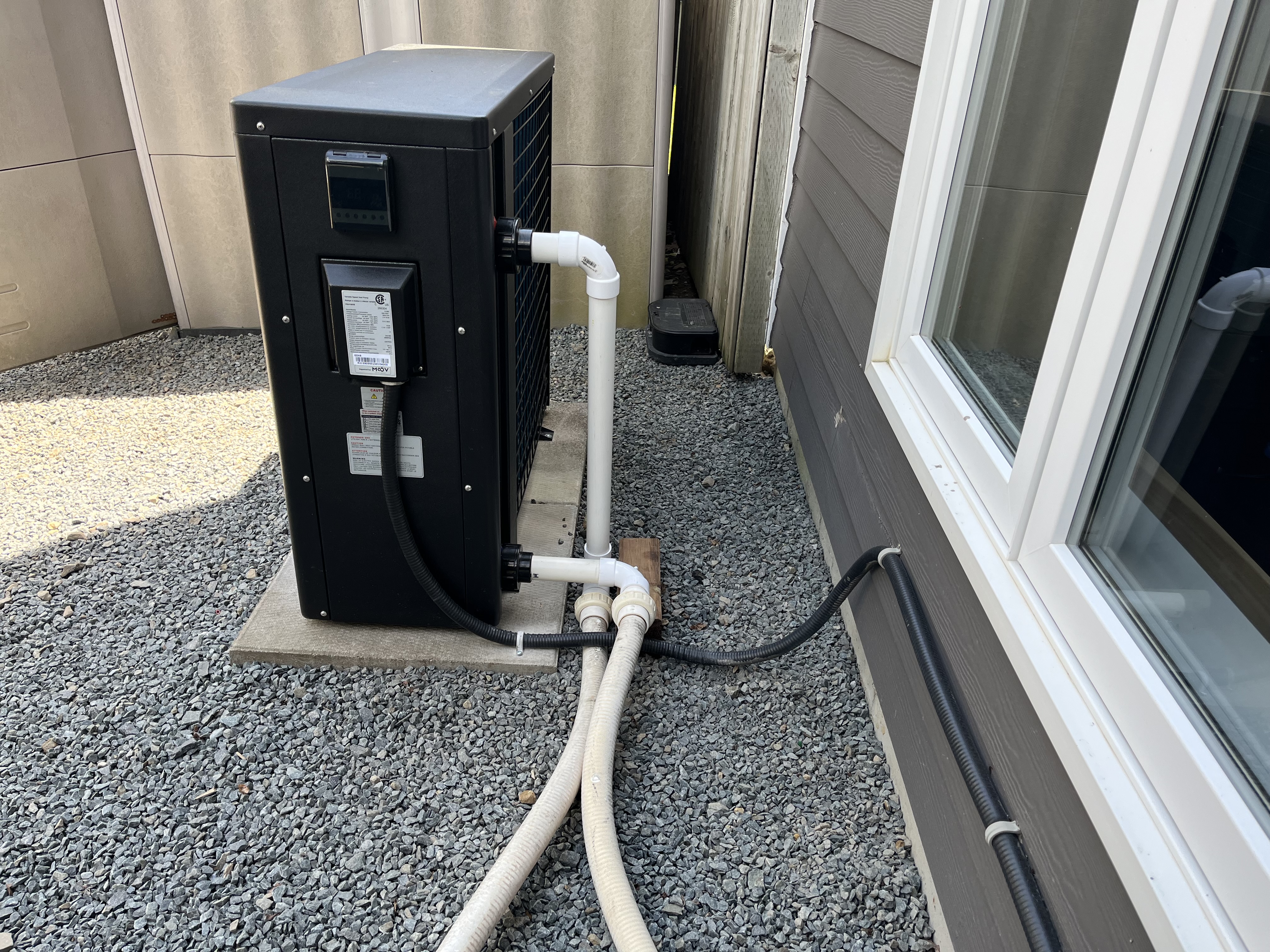

Bought this in March and just had it installed this past weekend. Pool is inground, 16x32 80,000L. Very happy with the performance so far. At first startup on Sunday, the thermostat read 66F. After an hour it was at 67F. By the next morning it was up to 71F, and with the help of the recent Ontario heat-wave it was at 78F by Monday evening. I had it set to 82F from the get-go just to see how long it would take, and by Tuesday morning I noticed the fan was off and it had reached 82F. I'm in Northern Ontario, so I'm hoping this will extend our swimming season without needing a wheelbarrow full of cash nearby to shovel into the old NG heater.

Review Image Review Image Review Image

Review by Justin on June 21, 2024


This unit is really pretty cool. I love how is mananages the compressor speed intelligently once it reaches the set temperature.

Review by ERIK on June 29, 2022


Purchased this product this year and have installed. Have it running now for 6 hours and increased the pool water 4 degrees so far. Very quiet

Review by Rosemary P on May 2, 2022
