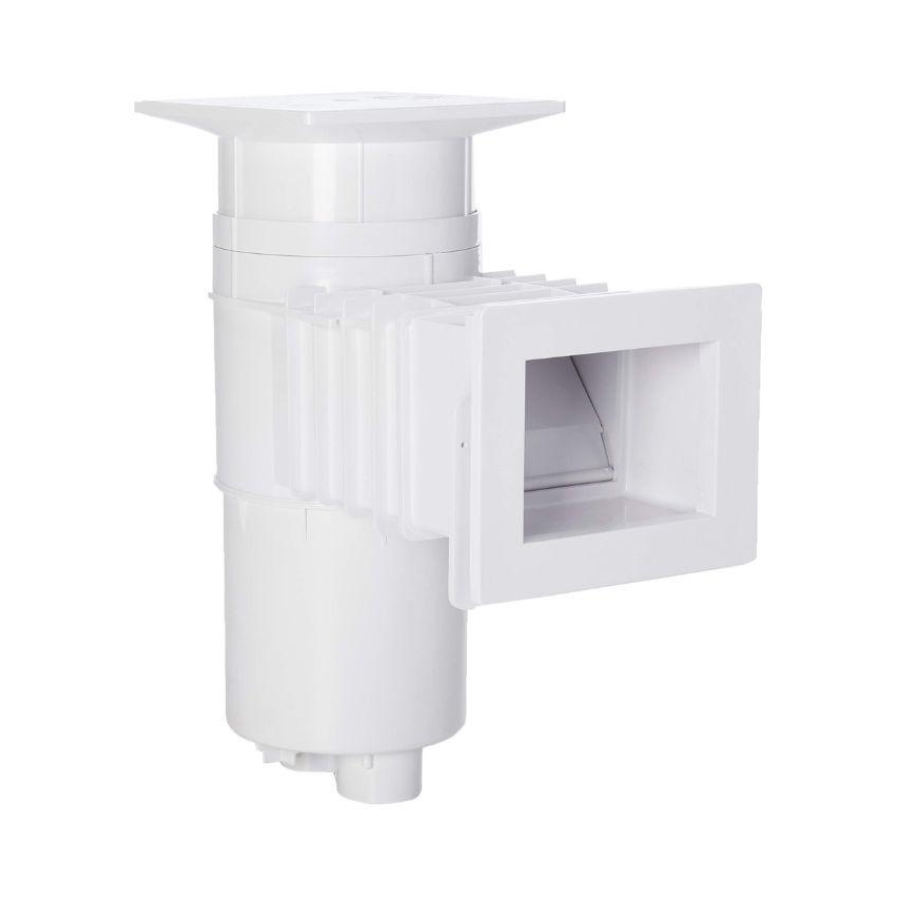

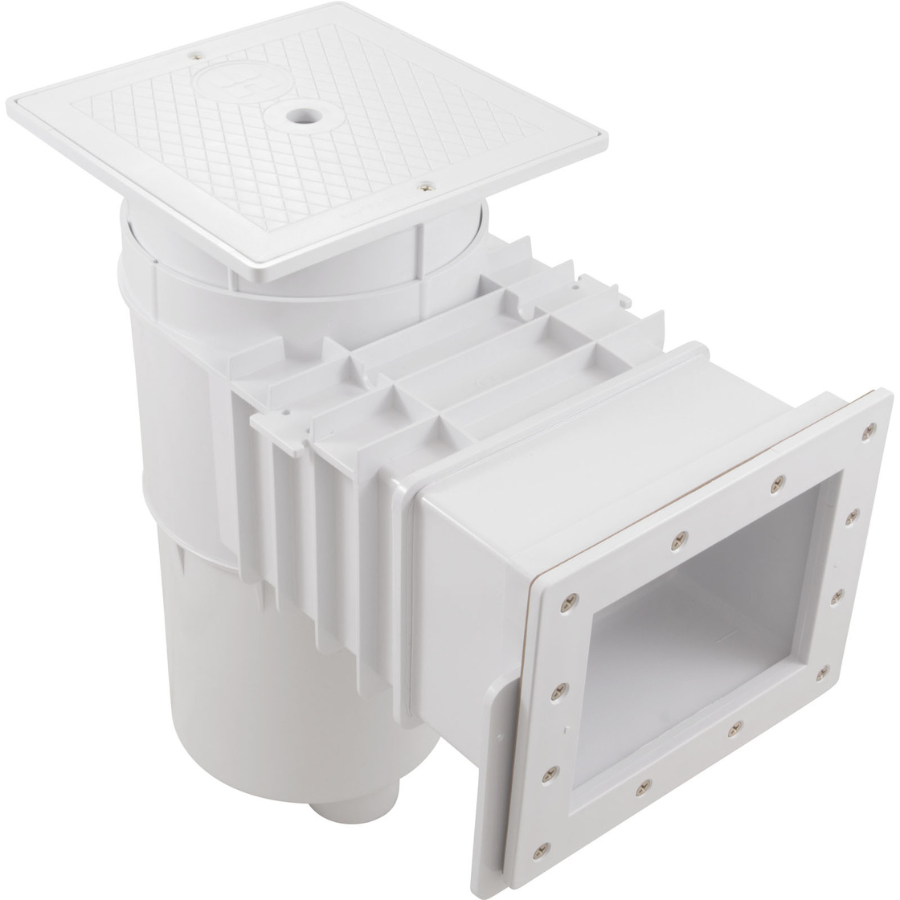

This versatile large capacity automatic skimmer features a wide opening to grab debris, and 1.5 inch FIP threads for plumbing versatility. It also includes a 3/4 inch auxiliary knockout port that can be used as a pool overflow or water fill line. The skimmer features a cover collar that allows for 2.5 inches of vertical adjustment. The snap-in weir will adjust automatically to 4.5 inches of variation in the water level. The Hayward Auto Skim is for both vinyl and fiberglass pools.

Return jets and main drains sold separately.

Features:

• 1.5" and 2" port sizes for plumbing versatility.
• Standard cover and collar assembly with 1.5" vertical adjustment.
• Available in White and Dark Grey.
• Integral Flo-Control slide plate.
• Optional float valve for thru skimmer suction outlet system.
• Optional extension collar allows 2.5" additional vertical height.
• Optional stackable notched extension collar allows infinite vertical adjustment.
• Optional float valve and equalizer kit with a NSP approved over to any Auto-Skim model with a square cover to accommodate commercial requirements.
• 'OM' designation indicates thru-wall, outside mount for metal wall installations.
• In-ground, vinyl, fibreglass, residential and commercial pools and spas.

Product Warranty Coverage: Hayward Parts come with a 30 Day Limited Manufacturers Warranty. The manufacturer warrants their parts against defects on workmanship and materials. This warranty will be void if this part is damaged as a result of improper installation or use, or if damage is a result of ice. Warranty does not cover any labour charges, cost of lost water or chemicals, or any other damages that may occur.
