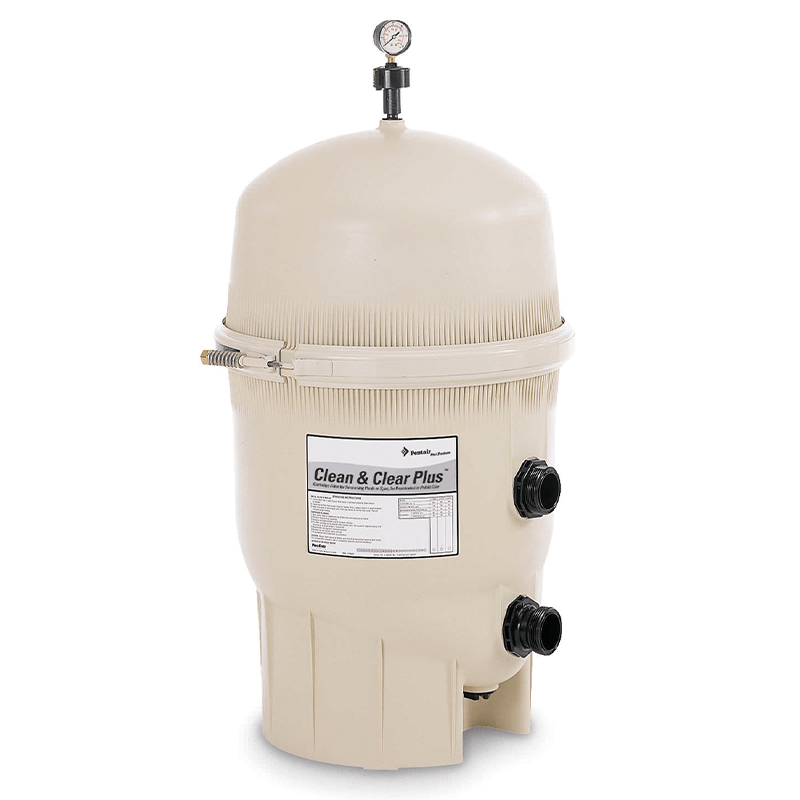

Pentair Clean and Clear Plus 520 Cartridge Filter

FIBERGLASS REINFORCED POLYPROPYLENE TANK

Clean & Clear Plus Filters have a corrosion resistant injection molded filter tank featuring superior strength and reliability. The cartridge assembly uses four easy to clean, non-woven, polyester cartridges. Each filter is supplied with a bulkhead union set for easy installation.

Features:

• NSF listed
• Superior strength
• Large filter area for increased dirt capacity
• 1-1/2 in., 100% drain clean-out port
• Continuous High Flow™ Internal Air Relief*
• Injection molded tank
• Balanced hydraulic flow
• Tension Control™ Clamp
• 100% factory tested
• Black bulkhead unions
• High Flow manual air relief valve

Note: Actual system flow will depend on plumbing size and other system components, Pentair does not recommend flow rates above 150 GPM.

*Integrated Continuous High Flow Internal Air Relief is operational only when there is unobstructed flow in the circulating system. Operating Limits - maximum continual operating pressure of 50 PSI. Pool.spa (bather) applications, maximum operating water temperature (internal filter) 104 degrees F (40 degrees C).

Warranty Coverage: Pentair Clean and Clear Cartridge Filters come with a 1 Year Limited Manufacturers Warranty. The manufacturer warrants this filter against defects on workmanship and materials. This warranty will be void if the equipment used to operate this filter is not compatible, or due to improper installation or use. Warranty does not cover any labour charges, the cost of lost water or chemicals, or any other damages that may occur.
