Why The Paper Cartridge In Your Cartridge Filter Exploded

Cartridge filters are a reliable and efficient method for maintaining clean pool water. However, incorrect installation, particularly reverse plumbing can lead to serious damage, including catastrophic failure of the filter cartridge. If your cartridge has ruptured or “exploded,” this guide will help you understand why it happened and how to prevent it in the future.

Cartridge filters operate by directing water from the outside of the cartridge toward the inside, trapping debris within the pleated filter material. Clean water then flows through the core and returns to the pool. This is a directional process, and proper plumbing orientation is critical to the system’s integrity.

What Happens When a Cartridge Filter Is Plumbed Backwards?

Reverse plumbing occurs when the water enters the core of the cartridge rather than the outside. This mistake creates several problems:

• The inner core of the cartridge is not designed to withstand incoming pressure.
• Water forces the cartridge outward, potentially causing the pleats to rupture or delaminate.
• In severe cases, the cartridge may burst violently, compromising the filter housing and sending debris into the pool.
• The system may experience abnormal pressure readings, restricted flow, and potential damage to the pump.

This kind of failure is not a manufacturing defect, it’s a plumbing error, and unfortunately, it is not covered under most warranties.

Signs of Reverse Plumbing

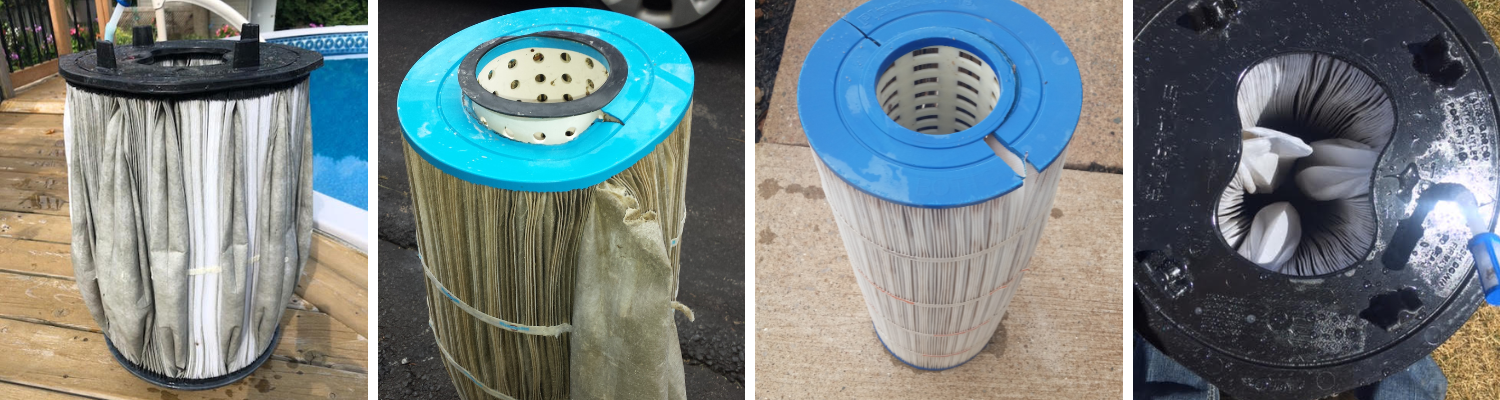

• The filter cartridge is torn or ruptured from the inside out.
• The pressure gauge shows unusually high or erratic readings.
• Water returning to the pool contains filter debris.
• The plumbing direction does not match the flow direction arrows on the filter housing.
• The filter was recently installed, replaced, or re-plumbed.

How to Correct the Issue

• Shut off the system immediately to prevent further damage.
• Inspect the filter housing and cartridge. If the cartridge is damaged, it must be replaced.
• Review the manufacturer’s installation diagram. Most filters have arrows indicating correct flow direction.
• Ensure that the inlet (from the pump) is connected to the outside of the cartridge and he outlet (to the pool) draws water from the center/core of the cartridge.
• Reconfigure plumbing if the lines are reversed.
• Install a new cartridge and restart the system slowly, observing the pressure gauge and flow.
• Monitor the system closely over the next 24 - 48 hours to confirm proper operation.

A ruptured cartridge filter is a serious issue typically caused by incorrect water flow due to reversed plumbing. Fortunately, it's preventable with proper installation and inspection. Understanding how your system works and ensuring it's plumbed correctly will protect your equipment and keep your pool running safely and efficiently.
