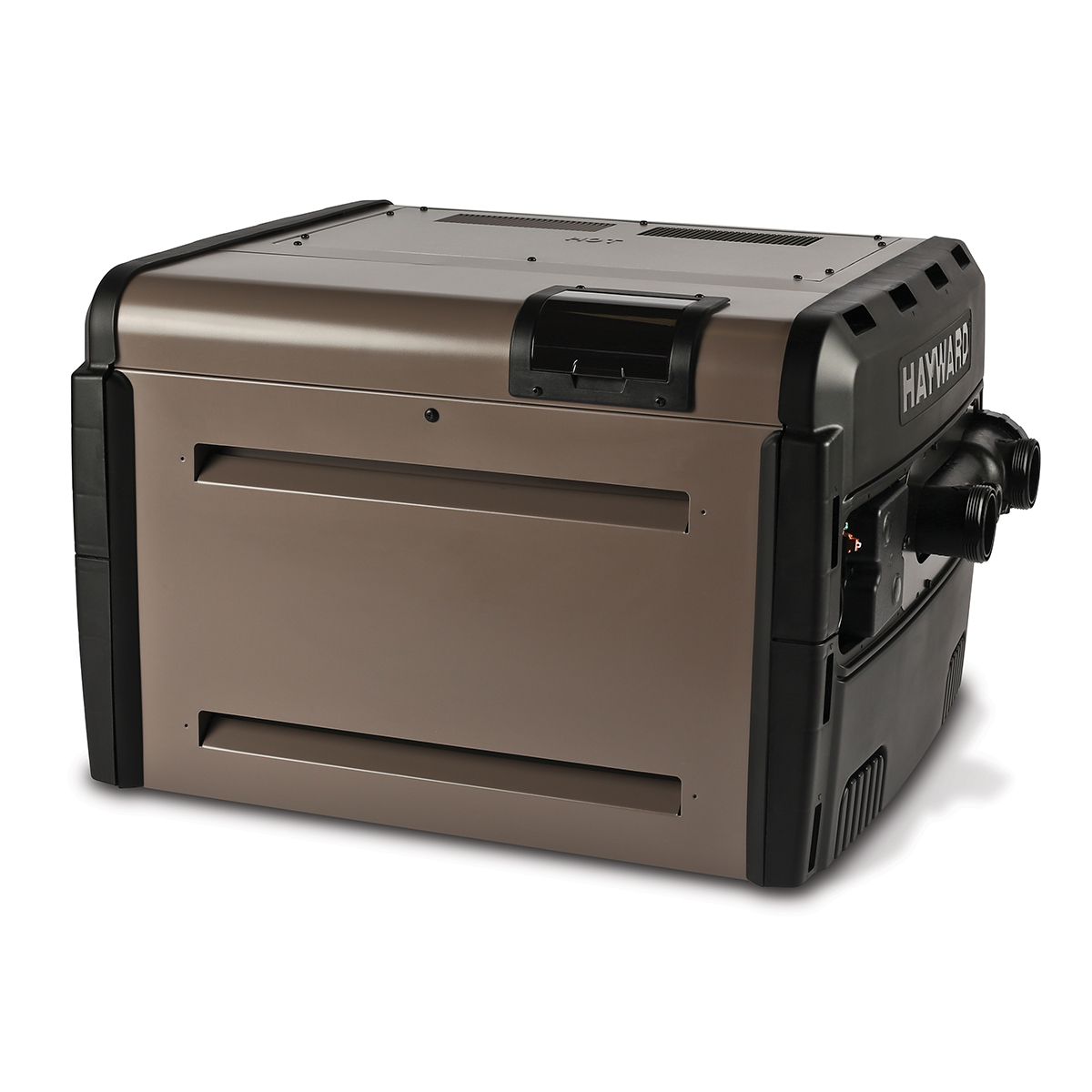

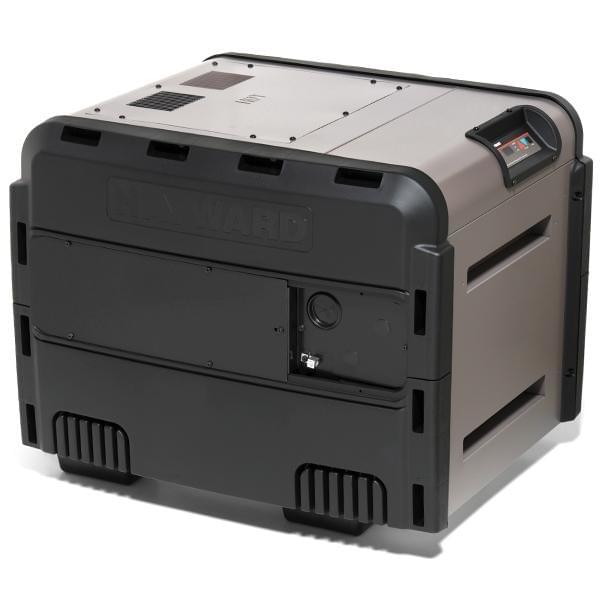

Hayward Universal H Series Low NOx 300,000 BTU Propane Swimming Pool Heater

List price: $3,356.99
Savings: $1,007.99 (30%)
In stock

For Altitudes Up To 3,048 Meters (10,000 Feet)

Product Name:
Hayward Universal H Series Low NOx 300,000 BTU Propane Swimming Pool Heater
Product Code:
Maximum Altitude:
10,000 FT
BTU Rating:
300,000 BTUs
Heater Type:
Connection Size:
2 Inches
Voltage (if required):
120 / 240 V
Replacement Parts
2 Year Parts, 1 Year Labour

Presenting Hayward®'s world-class heater with an Earth-friendly conscience; the Universal H-Series heater! While all Hayward H-Series heaters are energy-efficient, the Universal H-Series Low NOx heater has an 83-84 percent industry-leading thermal efficiency and complies with all current California and Texas air quality emission standards. The low NOx emission makes it a perfect choice for the environmentally concerned pool owner.

Enjoy a warmer pool this season without your fuel costs skyrocketing. Hayward's H-Series heaters represent innovative heating technology for pools and spas. Its hydraulic performance also saves energy by reducing the circulation time of the pump. It can raise the temperature of an 800 gallon pool 30 degrees in less than an hour and you'll feel the benefits the moment you step into the water. This approach to heating your pool is an efficient use of energy; showing once again our commitment to developing earth-friendly products.

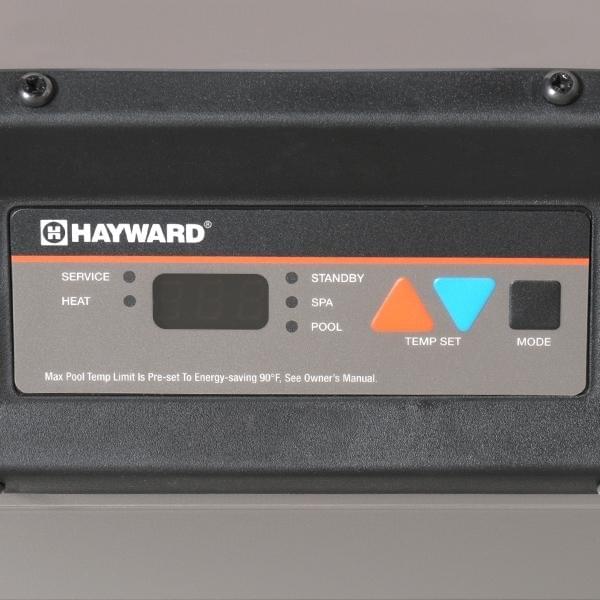

Other performance and efficiency-enhancing advances include stainless steel burners, corrosion-resistant Finn Plate heat exchangers with Cupro nickel, and insulated Fire Tile combustion chambers. This traps the heat unlike other forms of insulation delivering the highest degree of performance from every BTU. Equipped with an LED control panel it monitors heater performance for added convenience and maximum comfort with minimum effort. The ignition system delivers dependable lighting and reliable operations with just a touch of a button. The forced draft system constantly moves air through the combustion chamber to eliminate all outside weather variables affecting heating performance, such as wind conditions, eliminating the need to install a high-wind stack.

Additionally, the Universal H-Series heater is easy to install and combines advanced technology with universal-fit flexibility making it virtually compatible with any new or existing equipment pad. This heating mixture sustains your swimming season, adds to your comfort, is energy efficient and reduces your fuel costs. This low NOx emissions heater is perfect for you and the environment—all at the same time.

Hayward Universal H Series Low NOx 300000 BTU Propane Swimming Pool Heater FRENCH (Hayward_Universal_H_Series_Low_NOx_300000_BTU_Propane_Swimming_Pool_Heater_FRENCH.pdf, 2,846 Kb) [Download]

Hayward Universal H-Series Low NOx Manual (Hayward_Universal_H-Series_Low_NOx_Manual.pdf, 1,610 Kb) [Download]

Hayward Universal H Series Low NOx 300000 BTU Propane Swimming Pool Heater VENTING (Hayward_Universal_H_Series_Low_NOx_300000_BTU_Propane_Swimming_Pool_Heater_VENTING.pdf, 1,323 Kb) [Download]
